Thông tin chi tiết Bo mạch chủ (mainboard) | |
| Hãng sản xuất | MSI |

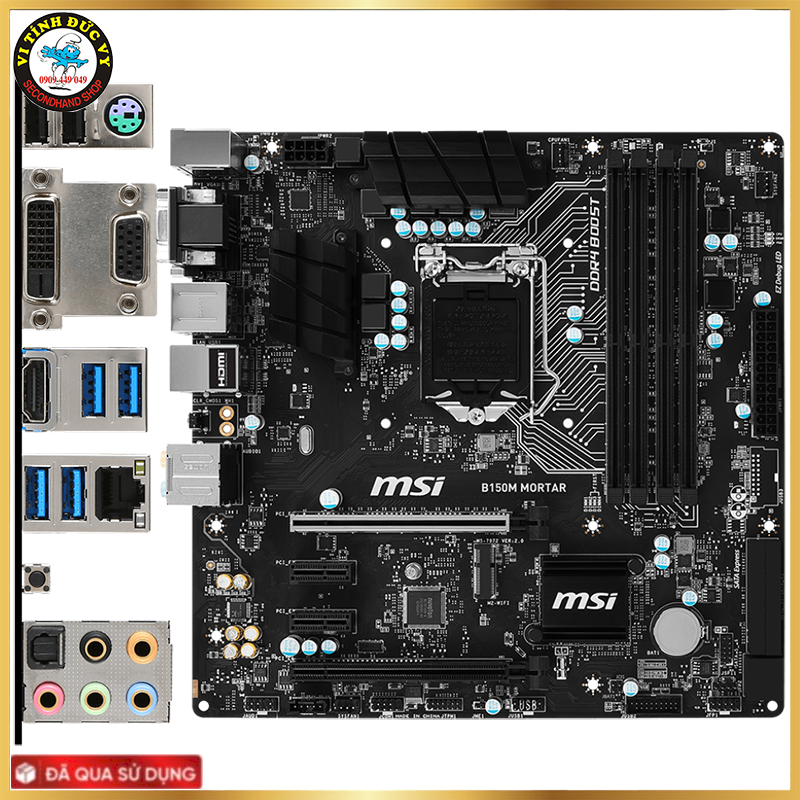

| Model | B150M MORTAR |
| Chipset | Intel® B150 |
| CPU hỗ trợ | Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151 |
| RAM hỗ trợ | • 4 x DDR4 memory slots, support up to 64GB - Supports DDR4 2133 MHz • Dual channel memory architecture • Supports ECC, un-buffered memory • Supports Intel® Extreme Memory Profile (XMP) |
| Đồ họa | • 1 x HDMI™ ports, support a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz • Supports 2-Way AMD® CrossFire™ Technology |
| Lưu trữ | • 6 x SATA 6Gb/s ports • 1 x SATAe port |
| Audio | • Realtek® ALC892 Codec • 7.1-Channel High Definition Audio • Supports S/PDIF output |
| LAN | • 1 x Realtek RTL8111H Gigabit LAN controller |
| Khe cắm mở rộng | • 2 x PCIe 3.0 x16 slots (support x16/x4)* • 2 x PCIe 3.0 x1 slots • 1 x M.2 Wi-Fi module slot |
| USB | - 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel,2 ports available through the internal USB connectors) - 4 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connectors) |
| Kết nối I/O bên trong | - 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 6 x SATA 6Gb/s connectors - 1 x USB 3.1 Gen1 connectors (support additional 2 USB3.1 Gen1 ports) - 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) - 1 x 4-pin CPU fan connector - 2 x 4-pin system fan connectors - 1 x Clear CMOS jumper - 1 x Front panel audio connector - 2 x Front panel connectors - 1 x TPM module connector - 1 x Chassis Intrusion connector - 1 x Serial port connector |
| Kết nối bảng phía sau | - 1 x PS/2 keyboard/ mouse combo port - 2 x USB 2.0 ports - 4 x USB 3.1 Gen1 ports - 1 x VGA port - 1 x HDMI™ port - 1 x DVI-D port - 1 x LAN (RJ45) port - 1 x Clear CMOS button - 1 x Optical S/PDIF OUT connector - 5 x OFC audio jacks |
| Hệ điều hành hỗ trợ | Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit |
| Kích thước | M-ATX Form Factor; 24.4 cm x 24.4 cm |
Sản phẩm cùng loại
750,000 đ
